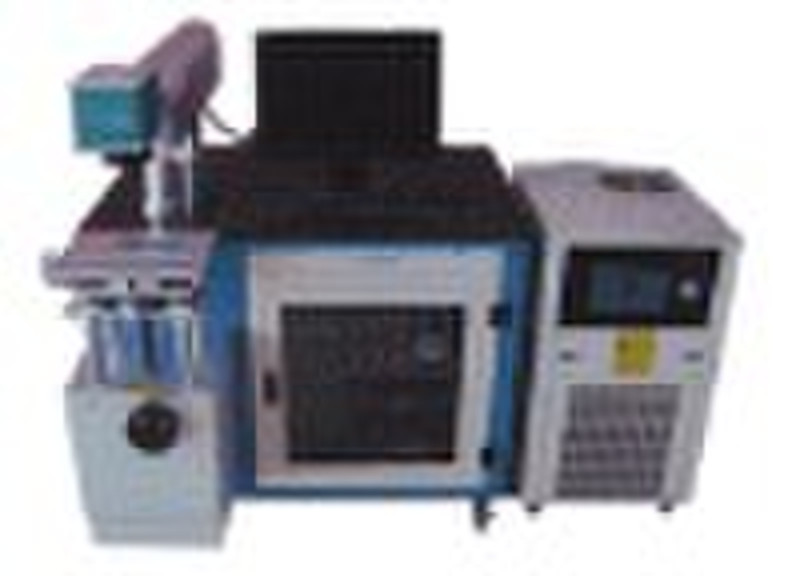

laser marking machine DW50Y

Laser marking machine DW50Y have the following features Features: 1) The machine takes YAG lamp-pumped solid laser device as the light source. By 2D fast-speed scanning lens swinging as the scheduled angles under the controlling of the computer, the laser focus on the surface of the work piece by F-θ lens to form images and realise marking and graph processing. 2) YAG lamp-pumped laser marking machine has the longest application time and the most extensive usage areas and is the most mature technology at present.3) By using fast-speed scan lens, it can scan the graph in shortest time & finish fine marking process.4) It can configure auto clamp and baiting production line as users requirements.5) It can mark data, series number & bar code automatically.6) Available for data communications, networking.Specifications: Laser Output Power: 50W Standard Marking Scrope: 110 mm×110mm Optional Marking Scope: 70mm×70mm/175mm×175mm Marking Depth: 0.01 0.3mm (adjustable) Marking Speed: 7000mm/second Repeated Accuracy: 0.001mm Laser Wavelength: 1064μm Minimum Line Width: 0.015mm Power Supply : 380V/50HZ Machine Power: 5 KW Power Supply : 380V/50HZ Machine Power: 5 KW
